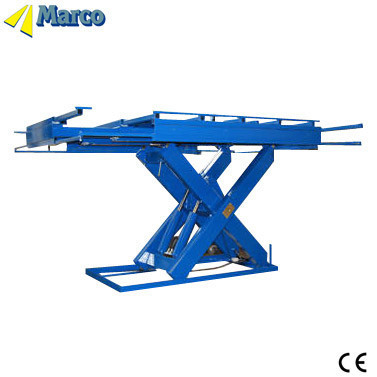

5 Ton Marco Single Scissor Lift Table with CE Approved Table and Lift Mechanism Customization

  • 5 Ton Marco Single Scissor Lift Table with CE Approved Table and Lift Mechanism Customization
  • 5 Ton Marco Single Scissor Lift Table with CE Approved Table and Lift Mechanism Customization
Certification CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. E. G. M4-050130-D2 Feature Insulating
Transport Package Wooden Pallet Specification CE
Trademark Marco Origin Ningbo, China
HS Code 8428909090 Application Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism Scissor Lift Carrying Capacity Weight Level
Moves Stationary Driven Type Hydraulic
Running Mode Stationary Customization Available | Customized Request
Leave a Message
Product Description

Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas!
 The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance.

Main Specification:
1.Standard Options

Pump: Europe brand
Control box- dead man control with up/down/E-stop

Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve

Sealing kit for cylinder: SKF brand

Motor: Hoyer motor, protection IP55

Scissor arm: Q345B

Hydraulic hose/fitting: Eaton

Paint: Finland brand - Tikkurila

2.Options extra:Depends on your require

Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales  and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks  (public holiday excluded)


Hot sales for 5 Ton Marco single lift table with CE approved:
Art.No. Type Capacity   ( kg) Platform (L*W) Lift Height                (mm) Own Height            (mm) Lift time               (s) Motor (kw) Weight (kg)
860060 M4-050130-D2 5000 2250*1200 1300 400 41 2.2 955
860061 M4-050130-D2B 5000 2250*1500 1300 400 41 2.2 1060
860064 M4-050160-D2 5000 2500*1200 1600 400 50 2.2 1060
860065 M4-050160-D2B 5000 2500*1500 1600 400 50 2.2 1150
860068 M4-050200-D2 5000 3000*1200 2000 400 33 4.6 1210
860069 M4-050200-D2B 5000 3000*1500 2000 400 33 4.6 1370
