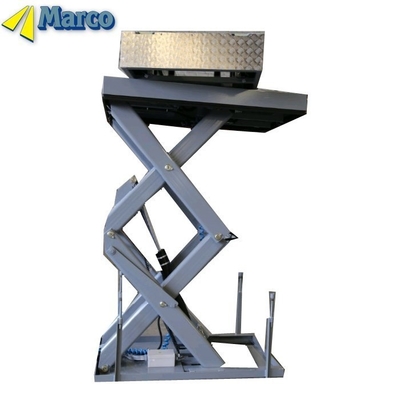

Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for Painting Workshop
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | M3-020190-D2/2H | Product Name | Hydraulic Operated Turntable On Hydraulic Scissor |
|---|---|---|---|
| Capacity | 2000kg | Lift Stroke | 1900mm |
| Close Height | 700mm | Transport Package | Wooden Pallet |
| Specification | 1600*1000mm | Trademark | Marco |
| Origin | Ningbo | HS Code | 8428909090 |
| Supply Ability | 1200pieces/Year | Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Scissor Lift | Carrying Capacity | Special Weight Level |
| Moves | Stationary | Driven Type | Hydraulic |
| Running Mode | Stationary | Customization | Available | Customized Request |
Product Description
Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for the Painting Workshop
Product Description
Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for the Painting Workshop
| Mechanical data | |
| Capacity | 2000 kg |
| Lift stroke | 1900 mm |
| Lifting time | 25 s |
| Closed height | 700 mm |
At the Volvo factory in Flen Sweden, products such as remanufactured engines, transmissions and hydraulic products is repainted before packing and shipping.
The items to be painted are mounted on trolleys and rolled on rails into a paint shop where they are handled on a lifting table.
The top of the lift table is equipped with a hydraulic operated turntable which gives the painter easier access to paint the object on all sides.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
