3000kg Capacity Shipboard Crane by Marco Customized Hydraulic Scissor Lifting Table
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | M3, 5 030160-D2/2H | Product Name | Marco Customized Hydraulic Scissor Lifting Table |
|---|---|---|---|
| Capacity | 3000kg | Lift Stroke | 1600mm |
| Close Height | 600mm | Transport Package | Wooden Pallet |
| Trademark | Marco | Origin | Ningbo |
| HS Code | 8428909090 | Supply Ability | 1200pieces/Year |
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism | Scissor Lift |
| Carrying Capacity | Special Weight Level | Moves | Stationary |
| Driven Type | Hydraulic | Running Mode | Stationary |
| Customization | Available | Customized Request |
Product Description

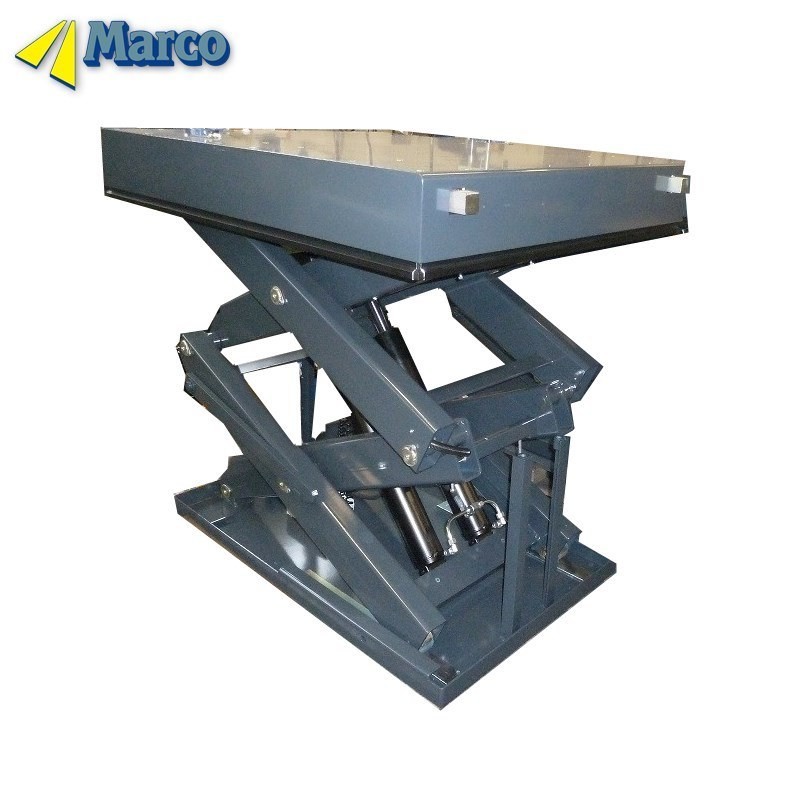

Marco Customized Hydraulic Scissor Lifting Table for Industrial Robots
Product Description
Marco Customized Hydraulic Scissor Lifting Table for Industrial Robots
| Mechanical data | |
| Capacity | 3000 kg |
| Lift stroke | 1600 mm |
| Lifting time | 24 s |
| Closed height | 600 mm |
36 pces tables in different sizes as manual working stations for an assembly line of industrial robots.
The lifting tables are moving under floor level and for this reason equipped with a new developed light version of shot bolt to keep the tables mechanical locked in floor level.
The shot bolts comes in versions both electrical and hydraulic..
The robots are transported on trolleys which moves along a railway track, those trolleys can be locked and secured on the tables before lifting.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
