Stationary Hydraulic Scissor Lift Table with Roll-off Guard and Chain Mesh Heavy Duty

Product Details

Certification: CE, ISO 9001

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	M2, 5-020060-D2	Product Name:	Hydraulic Scissor Lift Table With Roll-off Guard
Capacity:	2000kg	Lift Stroke:	600mm
Close Height:	260mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Model NO.:	M2, 5-020060-D2
Product Name:	Hydraulic Scissor Lift Table With Roll-off Guard
Capacity:	2000kg
Lift Stroke:	600mm
Close Height:	260mm
Transport Package:	Wooden Pallet
Trademark:	Marco
Origin:	Ningbo
HS Code:	8428909090
Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level
Moves:	Stationary
Driven Type:	Hydraulic
Running Mode:	Stationary
Customization:	Available \| Customized Request

Stationary Hydraulic Scissor Lift Table with Roll-off Guard and Chain Mesh Heavy Duty

Hydraulic Scissor Lift Table with Roll-off Guard and Chain Mesh

Product Description

Hydraulic Scissor Lift Table with Roll-off Guard and Chain Mesh

Mechanical data
Capacity	2000 kg
Lift stroke	600 mm
Lifting time	18 s
Closed height	260 mm
Weight	625 kg

Other

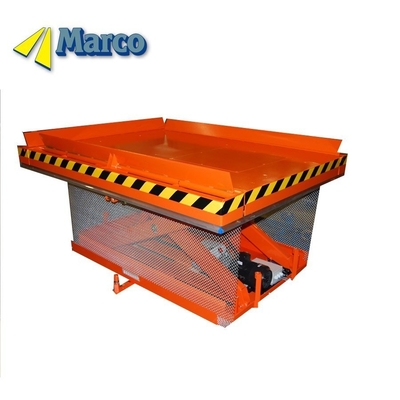

The table will be used to move trolleys from one floor to another. It´s equipped with automatic roll-off guards on three sides to prevent the trolleys to fall down.

Below the platform you can see that the table also has mesh guard with collectors to protect the scissor arms.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
