Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table Warehouse Crane

Product Details

Certification: CE, ISO 9001

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	M1-006090-D1-MT	Product Name:	Pallet Hydraulic Scissor Lift Table
Capacity:	600kg	Lift Stroke:	900mm
Close Height:	470mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Model NO.:	M1-006090-D1-MT
Product Name:	Pallet Hydraulic Scissor Lift Table
Capacity:	600kg
Lift Stroke:	900mm
Close Height:	470mm
Transport Package:	Wooden Pallet
Trademark:	Marco
Origin:	Ningbo
HS Code:	8428909090
Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level
Moves:	Stationary
Driven Type:	Hydraulic
Running Mode:	Stationary
Customization:	Available \| Customized Request

Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table Warehouse Crane

Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table

Product Description

Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table

Mechanical data
Capacity	600kg
Platform size	1350x800mm (LxW)
Lift stroke	900mm
Lifting time	20s
Closed height	470mm

Other

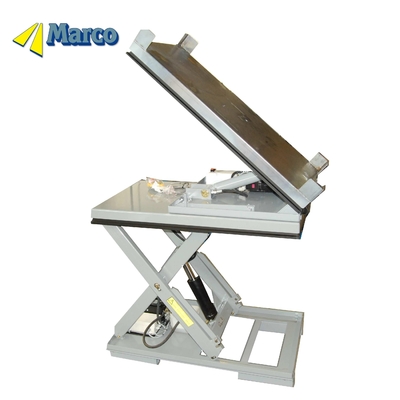

A tilt table designed to tilt 40degrees. On the platform there's support for an eurpallet. This table is also equipped with a pallet truck frame for easy access with a truck.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
