Hydraulic Scissor Lift for Theatres Performances Stationary Stage 5-030112-D4/2L

Product Details

Certification: CE, ISO 9001

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	M7-030543-D2 + M3, 5-030112-D4/2L	Product Name:	Stationary Stage Hydraulic Scissor Lift Platform
Capacity:	3000kg	Lift Stroke:	6550mm
Close Height:	1700mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Model NO.:	M7-030543-D2 + M3, 5-030112-D4/2L
Product Name:	Stationary Stage Hydraulic Scissor Lift Platform
Capacity:	3000kg
Lift Stroke:	6550mm
Close Height:	1700mm
Transport Package:	Wooden Pallet
Trademark:	Marco
Origin:	Ningbo
HS Code:	8428909090
Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level
Moves:	Stationary
Driven Type:	Hydraulic
Running Mode:	Stationary
Customization:	Available \| Customized Request

Hydraulic Scissor Lift for Theatres Performances Stationary Stage 5-030112-D4/2L

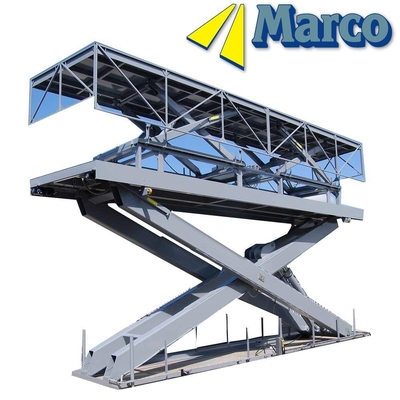

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances

Product Description

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances

Mechanical data
Capacity	3000 kg
Platform size	9490 / 8895 x 1955 mm
Frame size	8300 x 1560 mm
Lift stroke	6550 mm (5430 / 1120)
Lifting time	151 s (122 / 29)
Closed height	1700 mm (850 / 340 + 510)
Weight	11110 kg (7920 + 3190)

Other
？ The stage table is used during theatres,concerts and other scene performances.
？ The M7-lift table will be located in a shaft and is provided with 4 hydraulic shot bolts, 4 guide rollers and intermediate switches for stops at 3 levels below floor level (highest
level of M7-table), where stage equipment is stored.
？ The reason with a M3,5-lift table above the M7-table is to raise the last 1120 mm from floor level to stage level, where no possibility was to lock the table with shot bolts.
？ The upper platform has pipe steel framework on 3 sides for wooden panel attachment.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
