Hydraulic Driven Marco Middle Frame Scissor High Lift Table for Versatile Applications

Product Details

Certification: CE, ISO 9001

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	M3-012470-D4/4H	Product Name:	Marco Hydraulic Scissor High Lift Table
Capacity:	1200kg	Lift Stroke:	4700mm
Close Height:	1150mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

Model NO.:	M3-012470-D4/4H
Product Name:	Marco Hydraulic Scissor High Lift Table
Capacity:	1200kg
Lift Stroke:	4700mm
Close Height:	1150mm
Transport Package:	Wooden Pallet
Trademark:	Marco
Origin:	Ningbo
HS Code:	8428909090
Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level
Moves:	Stationary
Driven Type:	Hydraulic
Running Mode:	Stationary
Customization:	Available \| Customized Request

Hydraulic Driven Marco Middle Frame Scissor High Lift Table for Versatile Applications

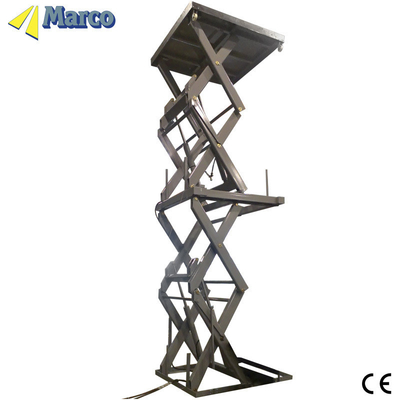

Marco Hydraulic Scissor High Lift Table with Middle Frame

Product Description
Marco Hydraulic Scissor High Lift Table with Middle Frame

Mechanical data
Capacity	1200 Kg
Lift stroke	4700 mm
Lifting time	60 s
Closed height	1150 mm

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
