Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size

Product Details

Certification: GS, CE, ISO 9001

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	M6.5-150121-D2K	Lifting Height:	1210mm
Lifting Time:	100s	Transport Package:	Wooden Pallet And Steel Pallet, Wooden Case
Specification:	2700x2200mm	Trademark:	Marco
Origin:	China	HS Code:	84289090
Supply Ability:	1000	Warranty:	12 Months
Lift Mechanism:	Scissor Lift	Carrying Capacity:	15000kg
Moves:	Stationary	Driven Type:	Hydraulic
Running Mode:	Stationary	Customization:	Available \| Customized Request

Model NO.:	M6.5-150121-D2K
Lifting Height:	1210mm
Lifting Time:	100s
Transport Package:	Wooden Pallet And Steel Pallet, Wooden Case
Specification:	2700x2200mm
Trademark:	Marco
Origin:	China
HS Code:	84289090
Supply Ability:	1000
Warranty:	12 Months
Lift Mechanism:	Scissor Lift
Carrying Capacity:	15000kg
Moves:	Stationary
Driven Type:	Hydraulic
Running Mode:	Stationary
Customization:	Available \| Customized Request

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.

Model No.	M6.5-150121-D2K	Capacity	15000kg
Platform size	2700x2200mm	Base Frame	2700x2170mm
Min. Height	250mm	Lifting Height	1210mm
Model Type	stationary	Lift Time	100s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011

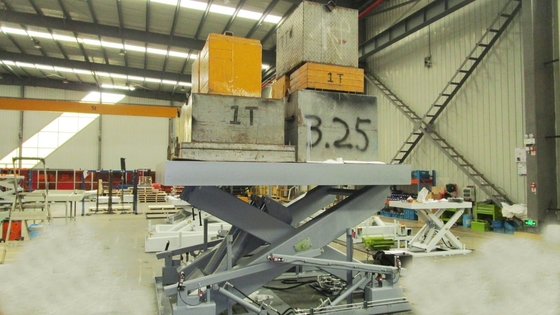

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 3

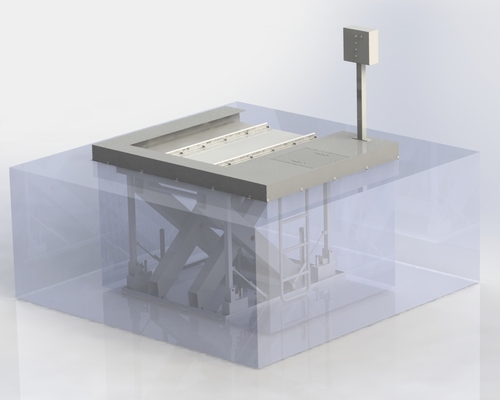

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 4

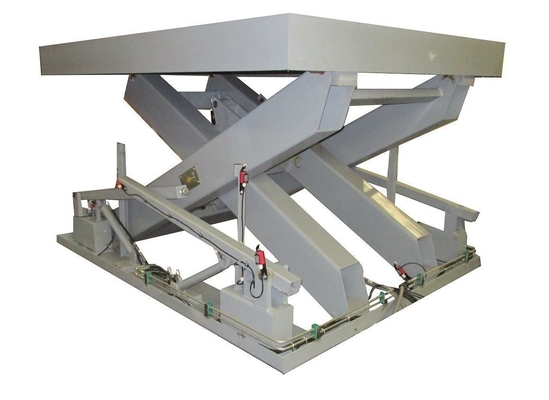

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 5

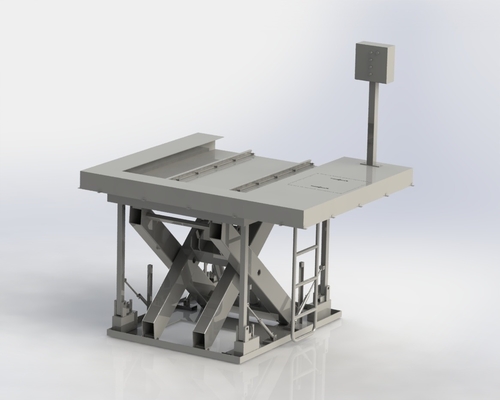

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 6

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 7
