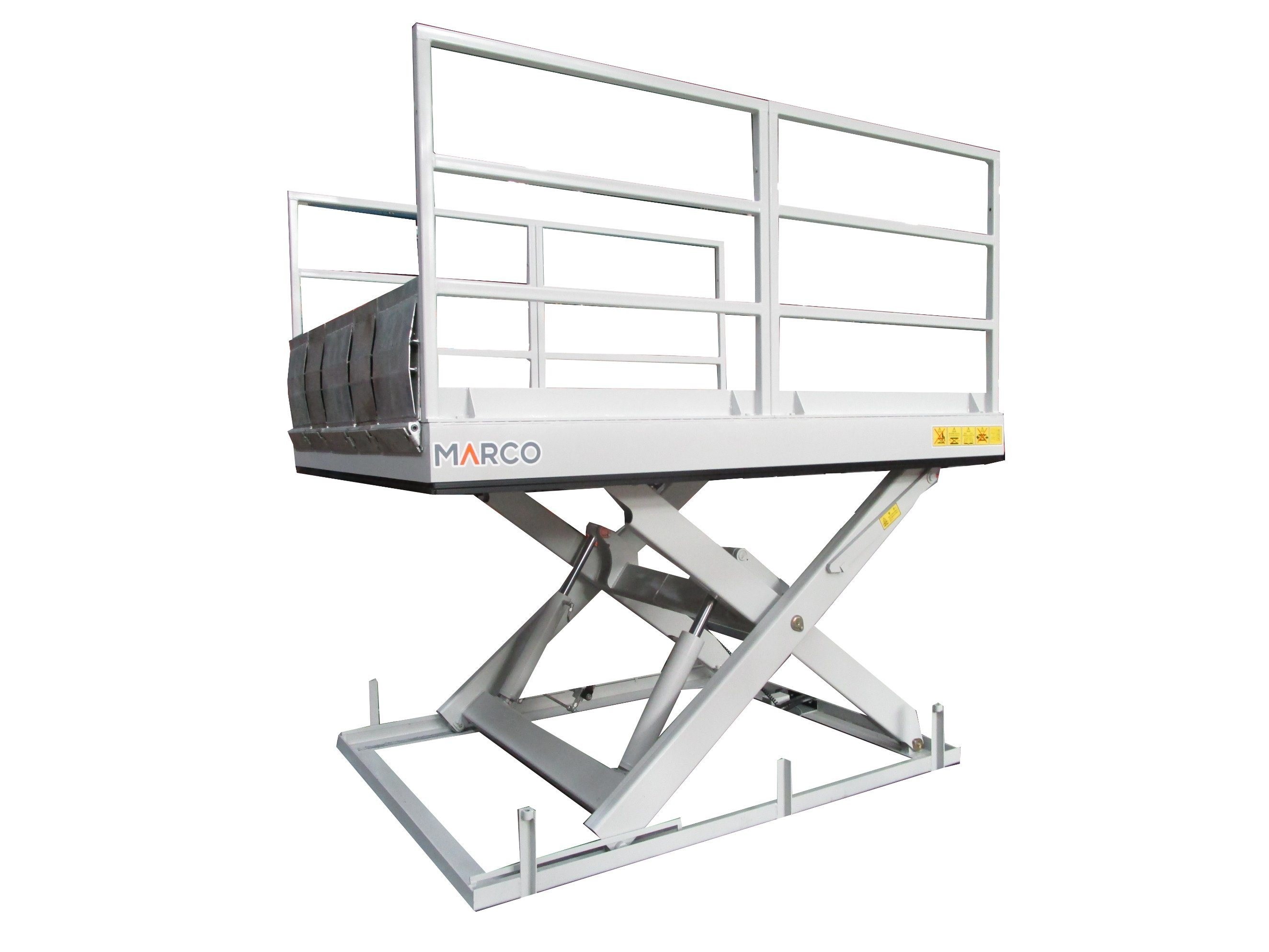

Customization M3-025130-D2K Loading Dock Table with Handrail and Loading Flap
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | M3-025130-D2K | Lifting Height | 1300mm |
|---|---|---|---|
| Lifting Time | 33s | Transport Package | Wooden Pallet And Steel Pallet, Wooden Case |
| Specification | 2500x2000mm | Trademark | Marco |
| Origin | China | HS Code | 84289090 |
| Supply Ability | 1000 | Warranty | 12 Months |
| Lift Mechanism | Scissor Lift | Carrying Capacity | 2500kg |
| Moves | Stationary | Driven Type | Hydraulic |
| Running Mode | Stationary | Customization | Available | Customized Request |
Product Description

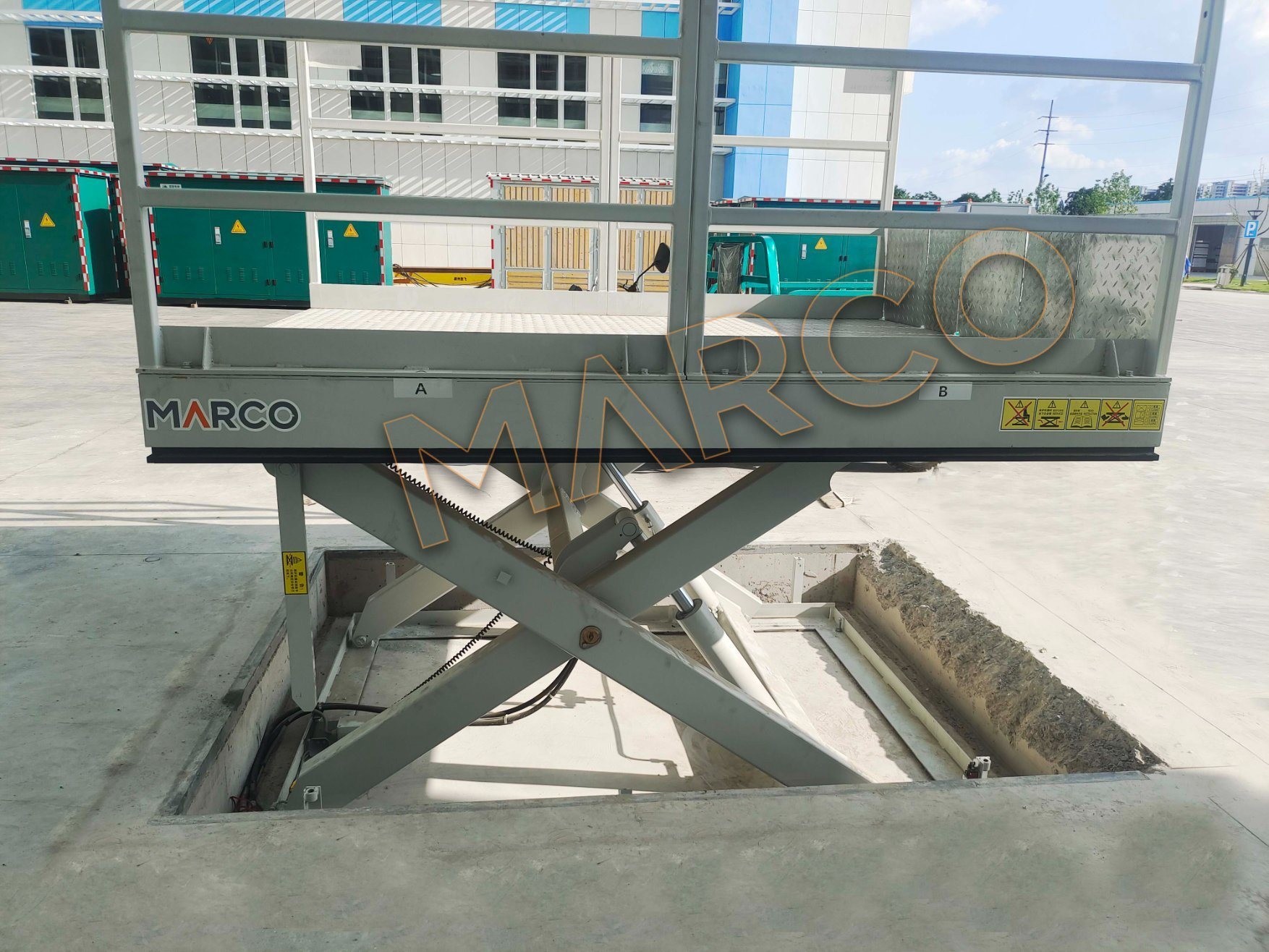

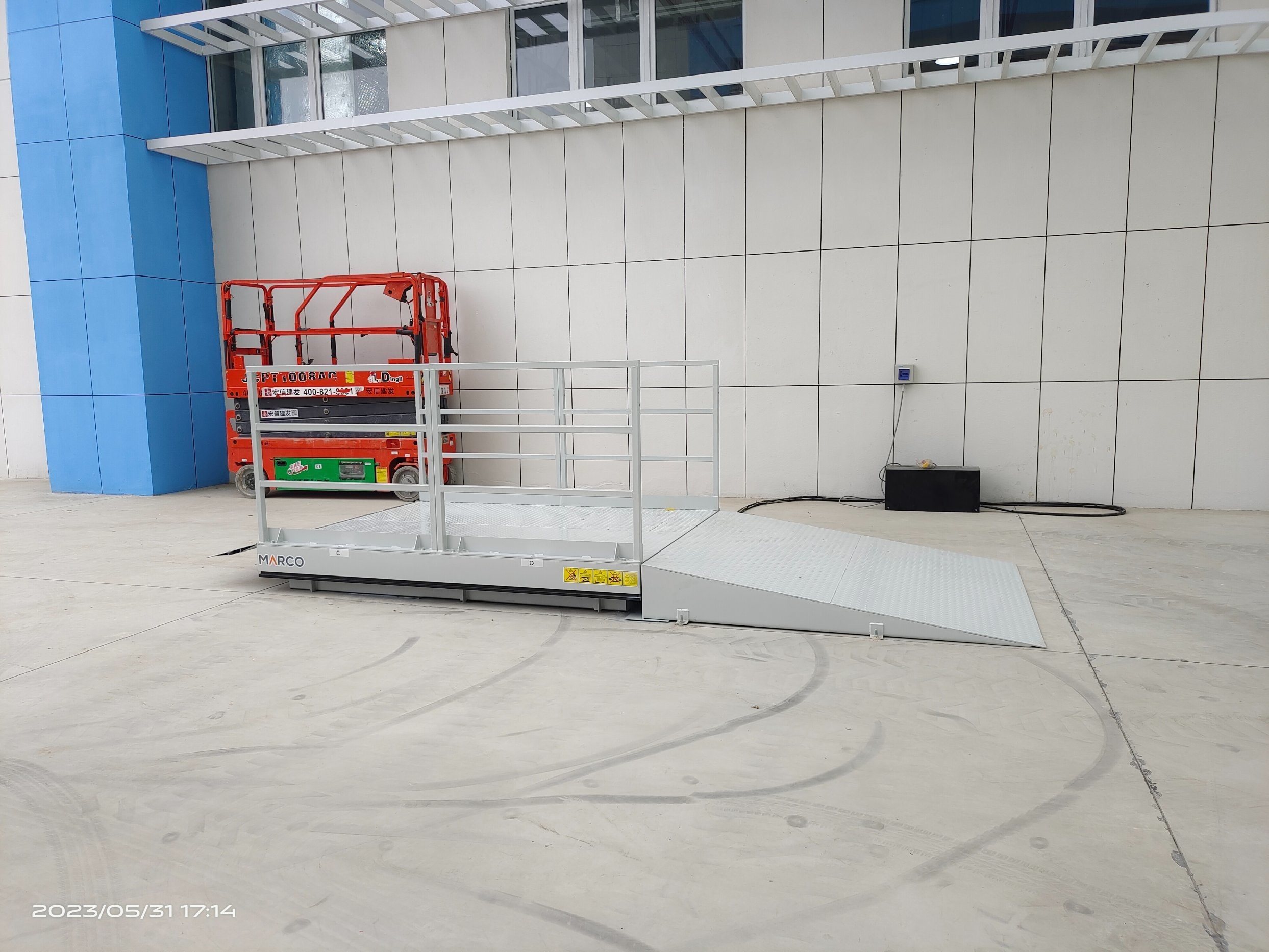

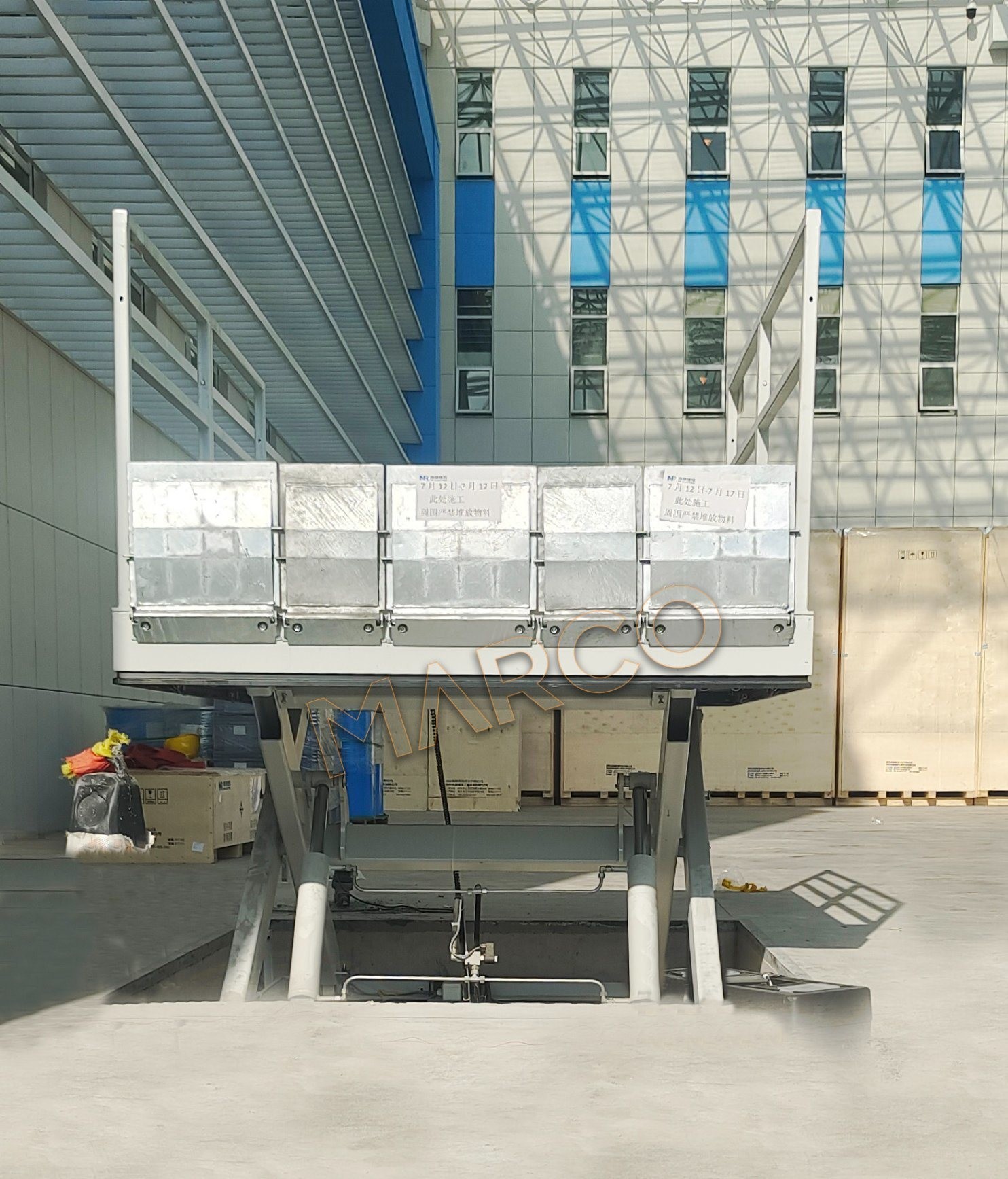

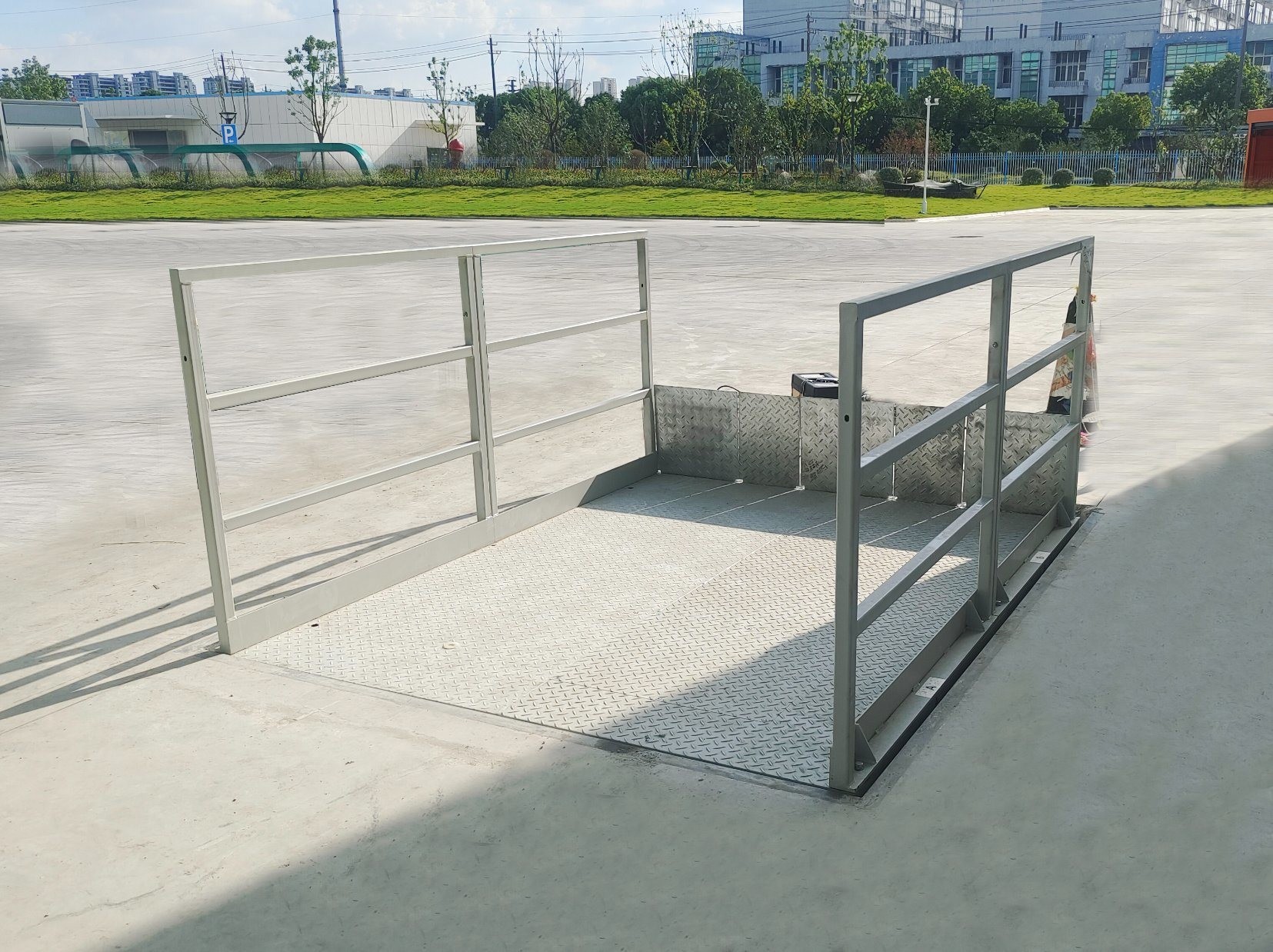

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.
| Model No. | M3-025130-D2K | Capacity | 2500kg |
| Platform size | 2500x2000mm | Base Frame | 2500x1900mm |
| Min. Height | 305mm | Lifting Height | 1300mm |
| Model Type | stationary | Lift Time | 33s |
| Color | Grey/green/ blue/others | Product name | refer to product |
| Specifications | Customizable | Application | material handling |
| Power Voltage | 380V 50Hz | Control Voltage | 24V DC |
| Delivery Time | 1 month | Package | exported case |
| Trademark | Marco | HS Code | 84289090 |
| Orgin | Made In China | Production Capacity | 100/month |
| Certificate | ISO9001, CE, ISO3834, | Design standard | EN1570-1-2011 |
